IIoT Gateway Solution
- Ready to Deploy & Fully customizable, Including white labeling
- Customizable Hardware and Software to Meet Client Requirements.
- Flexible computing options from Cortex-A7 to 4 x Cortex-A35 Processor.
- Furnished with a comprehensive range of interfaces for Industrial Needs.
- Targeted for CNC Machine Add-on, Telematics and Custom solutions as well.
- Licensing model for non-competing solutions without conflicts of interest.
INDUSTRIAL IoT GATEWAY
SPECIFICATION
Equipped With a Single ARM Cortex-A7 and Dual ARM Cortex-A35 processor,
paired with 1GB LPDDR4 RAM and 4GB eMMC memory, this system offers
remarkable responsiveness and computational capability for various
applications, featuring customizable options.
The Embedded Linux Board Supported Packages, constructed using Yocto
Project methodologies, offer a wide range of Internet of Things applications and
incorporate a robust IIoT Gateway framework. Additionally, we provide an IIoT
Gateway SDK. These packages facilitate the development of IoT applications, optimizing performance throughout the process.

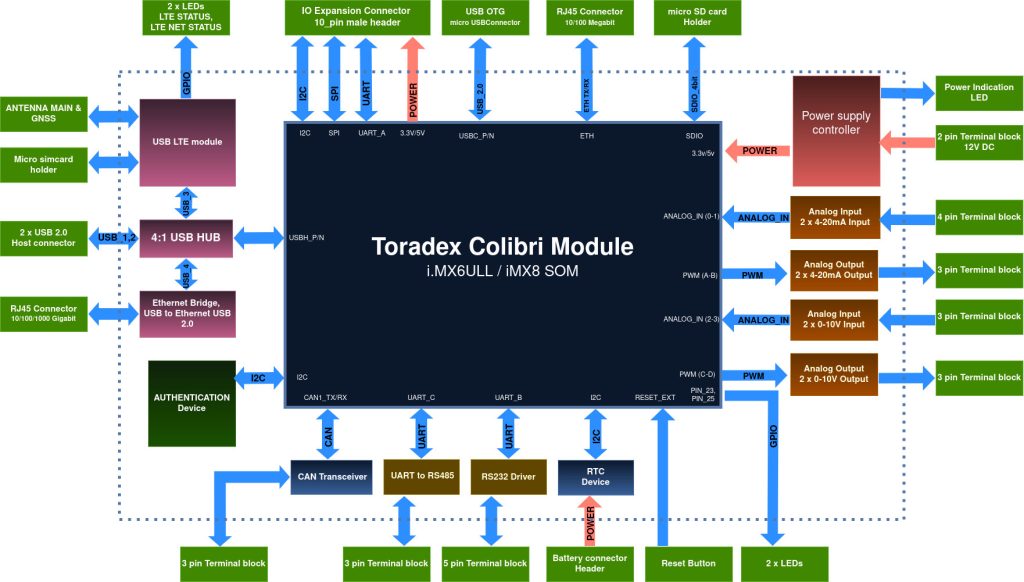

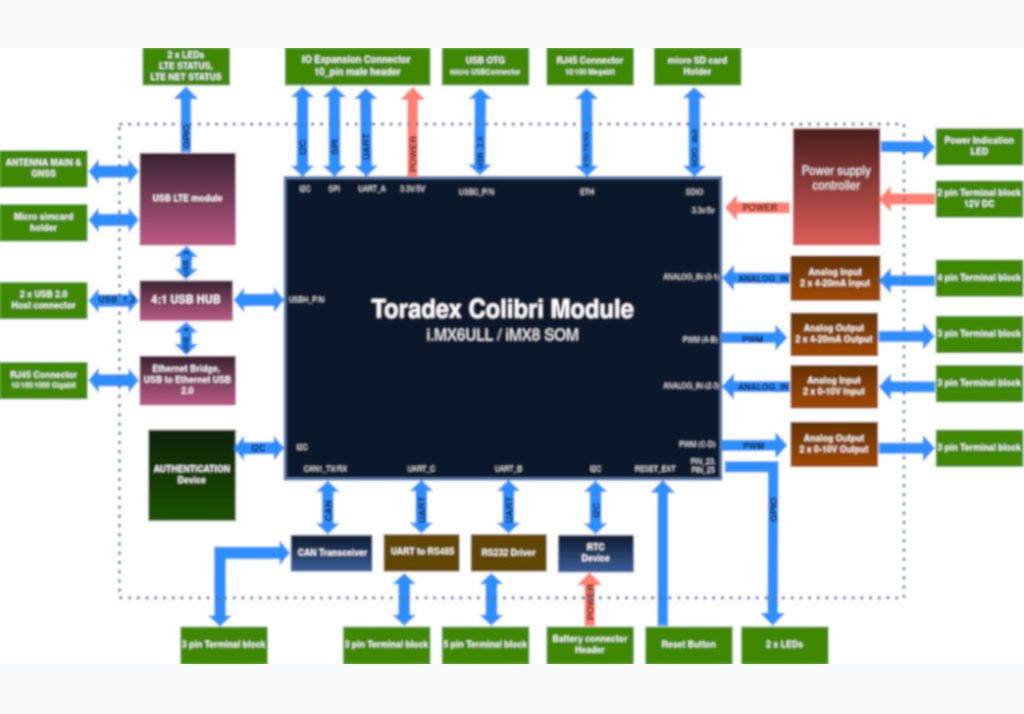

The Industrial IoT Gateway Platform boasts an extensive array of industrial wired
interfaces, comprising two Ethernet ports with 100Mbps supporting IEEE 1588,
and 1Gbps supporting IEEE 802.3/802.3u/802.3a standards, RS485 and RS232
Serial interfaces compatible with Modbus RTU, as well as Serial Interfaces (SPI,
I2C, UART, and CAN). These interfaces establish communication with
Programmable Logic Controllers (PLCs) and SCADA systems, guaranteeing
smooth connectivity and adaptability across various industrial applications.
Featuring LTE Cat M1/Cat NB2/EGPRS and integrated GNSS, operating in
ultra-low power mode, this device offers a robust selection of hardware-based
security features. Additionally, it includes an industrial WiFi interface with
Dual-band 802.11ac 2×2 MU-MIMO and Bluetooth 5.2 capabilities.
The Industrial IoT Gateway Platform ensures secure cloud connectivity through a
highly secure cryptographic co-processor that encrypts data with fully protected
keys, guaranteeing top-tier security when interfacing with major cloud services
such as AWS, Azure, and others.
The embedded Linux software supports various network protocols, including
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS,
ARP, VRRP, PPP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, and Wake On Lan (WOL)
through the IIoT GW SDK.
The Industrial IoT Gateway accommodates the reading of data from two sensors
via optically isolated inputs, operating within the 4-20mA range. Furthermore, it
can regulate two actuators with 4-20mA outputs. In addition, the system reads
data from two sensors with a 0-10V range and controls two actuators using
PWM outputs within the same 0-10V range.
Images
Youtube Gallery
Frequently asked questions
Our team of product development engineers specializes in embedded hardware and software within the industrial 4.0 and automation domain. We excel in customizing hardware and software to meet specific client requirements, facilitating swift product development and market entry.
At present, our industrial IoT gateway solution offers support for Amazon Web Services (AWS) cloud, ensuring secure connectivity through a cryptographic co-processor. We have the capability to extend support for other prominent IoT clouds such as Azure, Google Cloud, Things Network, and more.
Yes, we have the capability to redesign the hardware according to the client’s specifications and their specific farm requirements. We are committed to supporting customization, including fine-tuning the hardware to meet the client’s needs.
Yes, our charges will be based on the customization requests from the client, which may differ from our standard solutions in terms of hardware and software.
Yes, it is possible to enable IP routing features between Ethernet, wireless, and LTE interfaces. This enables the device to function with both LAN and WAN networks.
